Leapfrogging vortices simulation

8,169 views

Loading...

Loading...

Loading...

Rating is available when the video has been rented.
This feature is not available right now. Please try again later.
Published on Oct 17, 2009

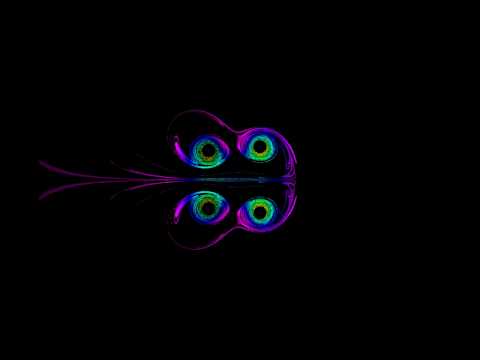

Four leapfrogging vortices in two-dimensions. Breadth ratio a=0.3. 100,000 passive particles to visualise flow field around vortices, coloured by velocity magnitude (spectrum palette, red high purple low). Solution method: standard Runge-Kutta 4th order with adaptive step sizing. Truncation error estimated by step halving. Spatial tolerance per time step was 1E-8.

Model - two dimensional point vortex singularities (incompressible potential flow)

dx(i)/dt = - Sum(j=0..N, j/=i) (k(j) * rij,y / rij^2 )
dy(i)/dt = Sum(j=0..N, j/=i) (k(j) * rij,x / rij^2 )

where:
rij,x = (x(i) - x(j)) ; rij,y = (y(i) - y(j)) ; rij^2 = rij,x^2 + rij,y^2

Initial conditions: all initial velocities zero
r(0) = (0,1) ; r(1) = (0,-1) ; r(2) = (0,a) ; r(3) = (0,-a)
k(i)=(-1)^i

Coded in Visual Basic .NET (yes, stuff like this can be done in basic, despite its name :-D)

Enjoy!
