Bicopter Flycopter

This channel is dedicated to making the progress of our bicopter development available to share.

This channel is dedicated to making the progress of our bicopter development available to share.

This project began the summer of 2012 when Martin and Rohan decided they needed something to do. The idea of a bicopter was inspired from fictional craft that Martin admired, and desired to build himself.
The two readily recognized that further help would be needed to proceed with the project, and thus, Charlie and Corey also joined the project.

.

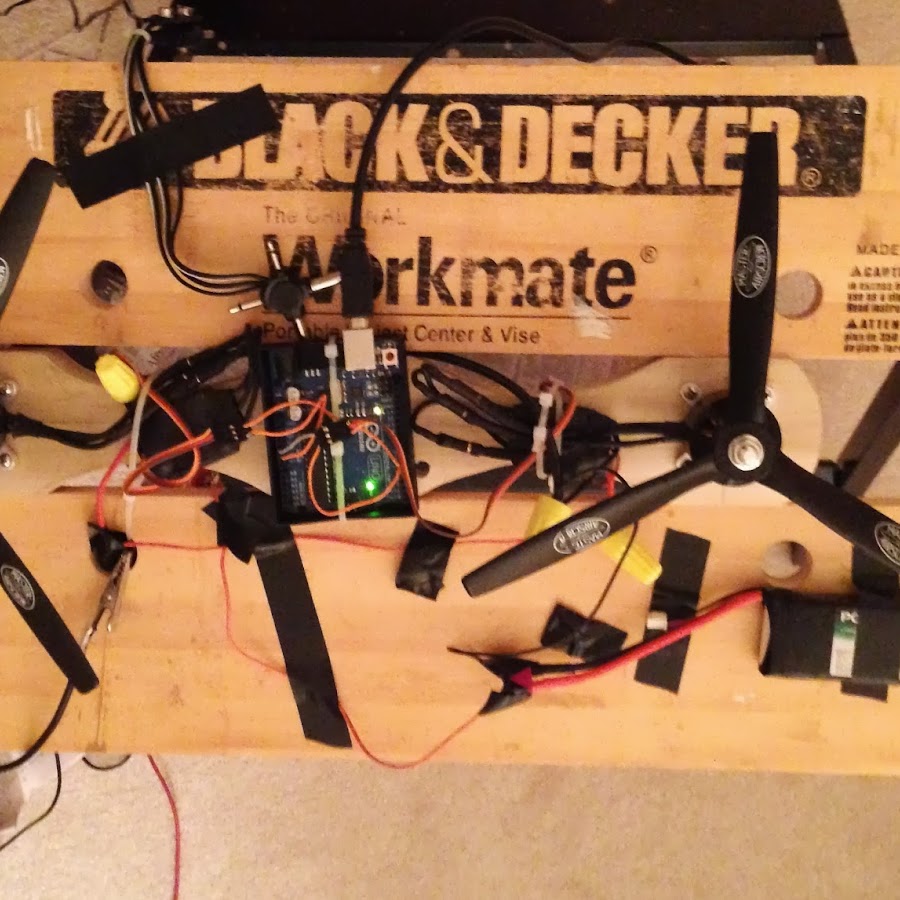

Hardware:
2 HP Motors 2814/06 Brushless Motor w/Hardware
2 Master Airscrew MA0970T 9x7 3-Blade G/F Nylon Propeller CCW and CW
1 Powerwing 2100mAh 2S 7.4V 20C LiPo Battery

.
Controls and Sensors:
1 Arduino Uno R3
2 Turnigy Plush 30 Brushless Speed Controller
1 Gyroscope module 3-Axis L3G4200D
1 Low-g Accelerometer 3-Axis MMA7361L
1 Ultrasonic Distance Measuring Sensor Module HC-SR04
